Anco Adjustable Double Sided Cantilever Racking

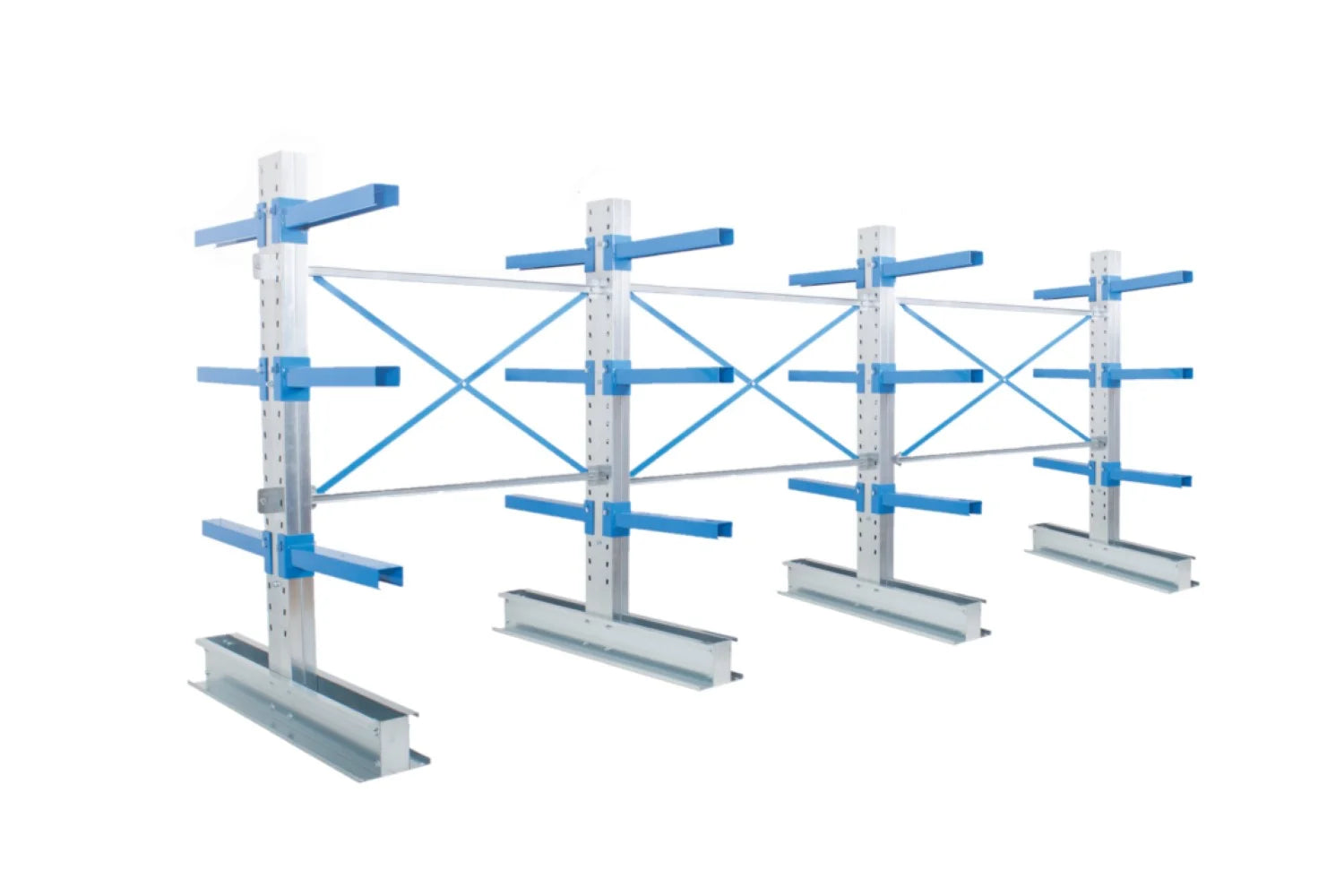

Anco Adjustable Double-Sided Cantilever Racking – Maximising Your Storage Space

This double-sided cantilever racking system provides a strong and cost-effective way to store long and awkward items such as timber, pipes and steel sections. Because of its modular design, the system helps you make better use of available warehouse space while keeping stored materials accessible.

In addition, this cantilever racking solution suits a wide range of industrial environments. The adjustable layout means the cantilever rack system can grow or change as your storage requirements develop.

Modular Design for Flexible Storage

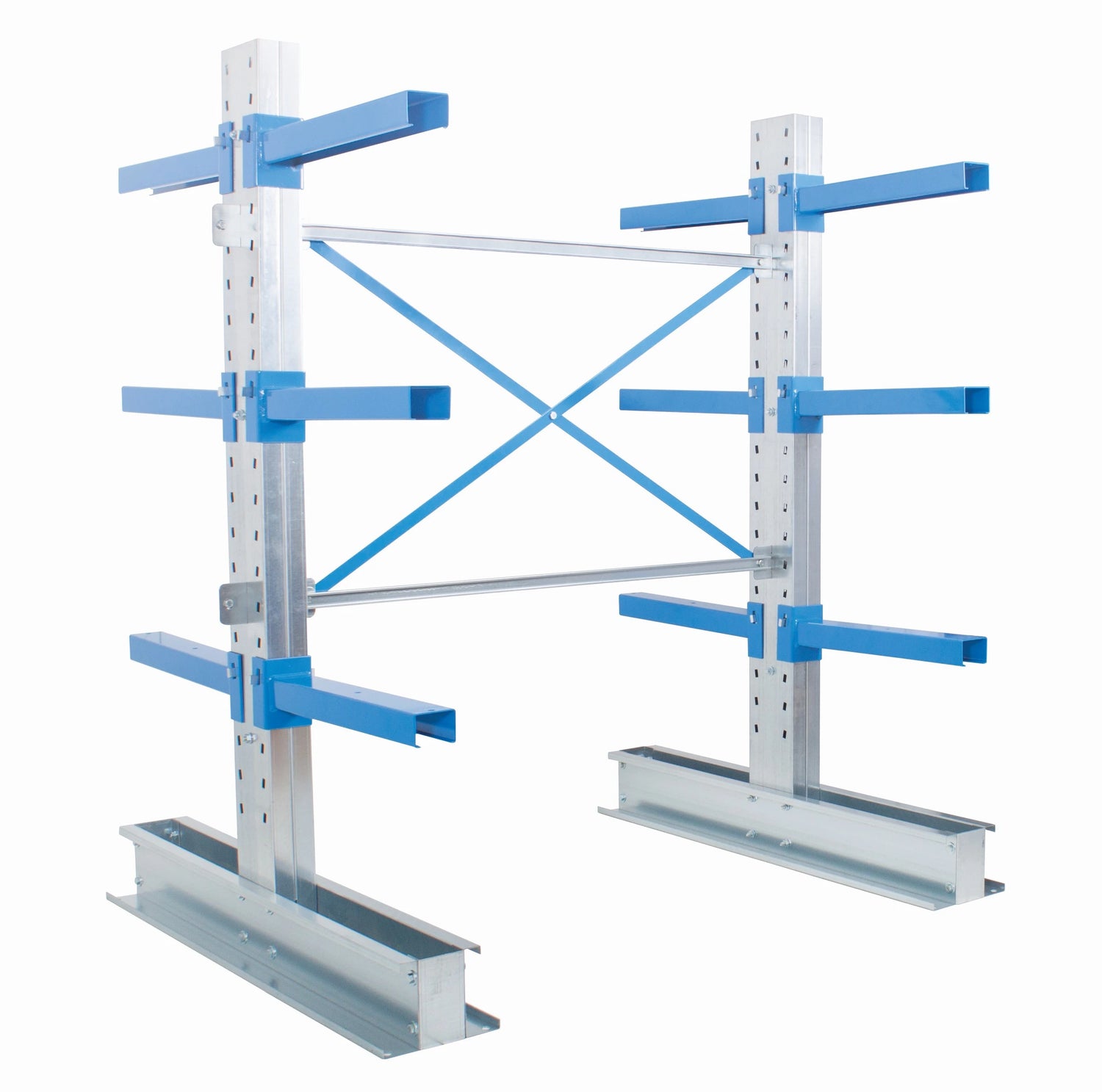

The frames are available in three heights and three depths. As a result, you can configure the cantilever storage system to suit both floor space and load requirements. Each bay includes three arms per frame, while double-sided frames include six arms as standard.

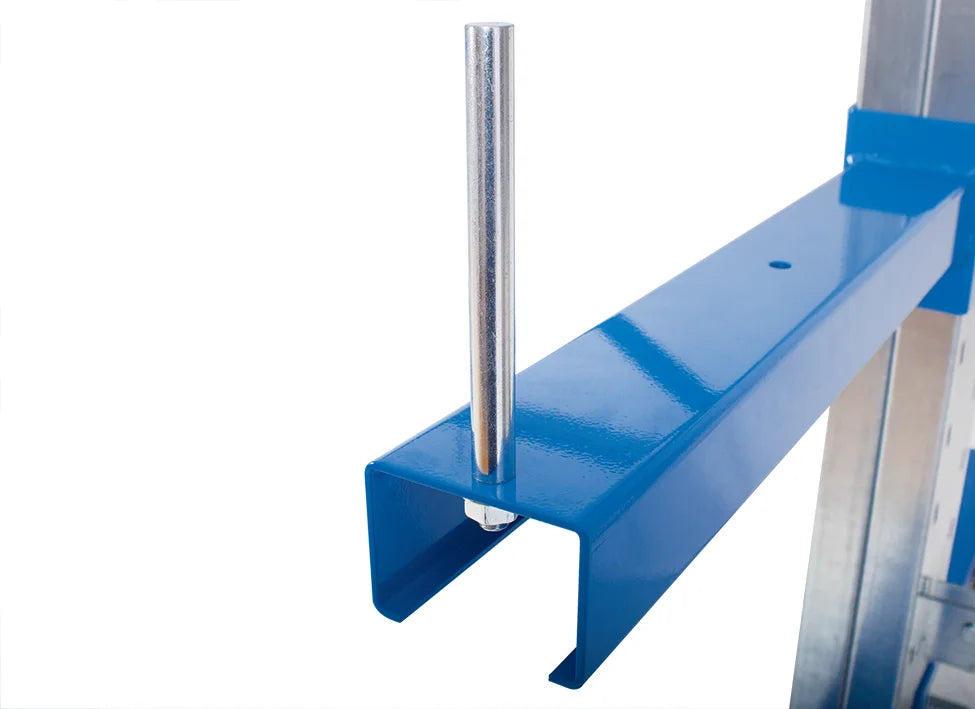

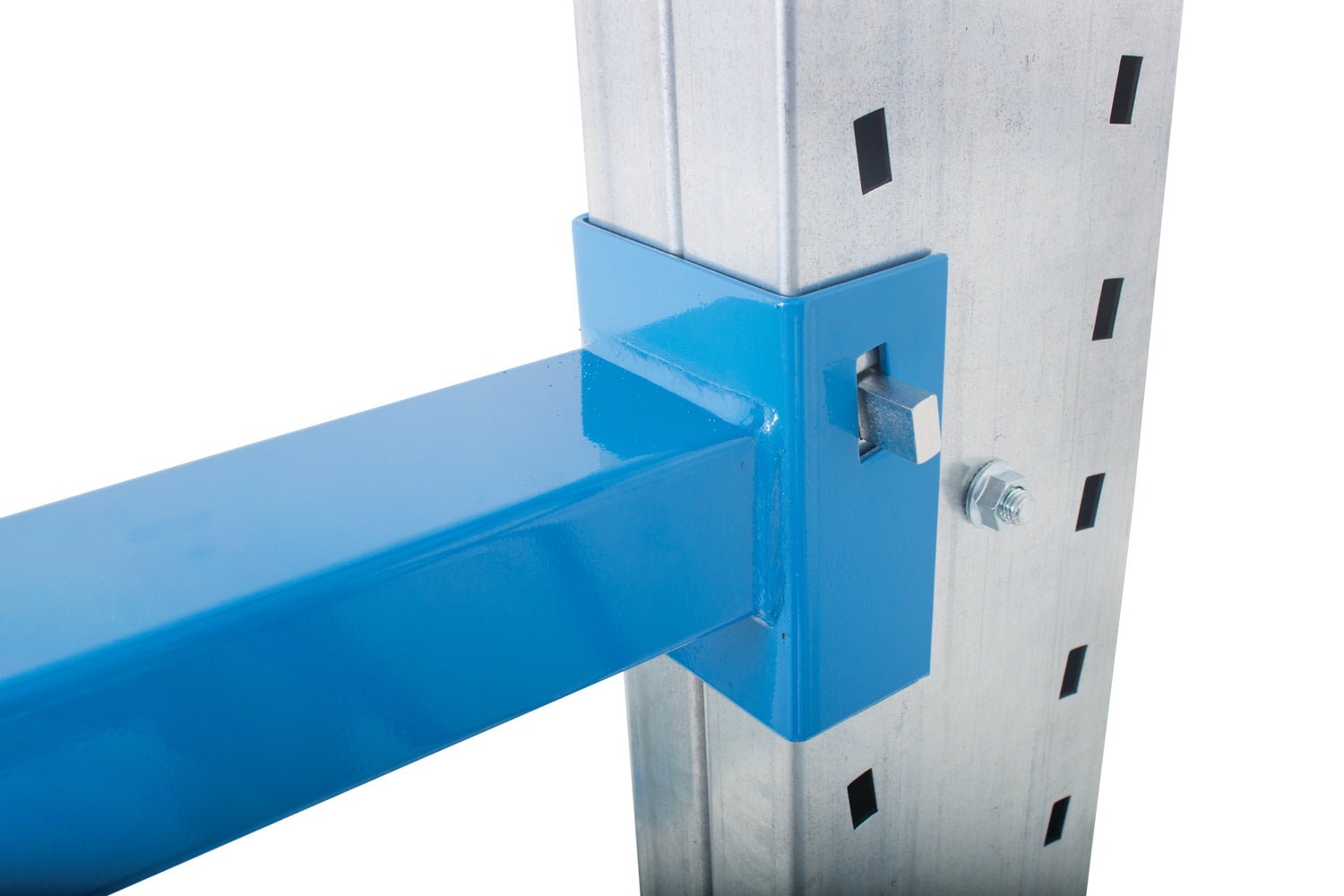

Furthermore, the arms adjust every 75mm, which makes reconfiguration quick and straightforward. If needed, you can also add arm end stops at an additional cost. These help secure loose items and reduce the risk of materials falling from the arms.

Easy Installation and Expansion

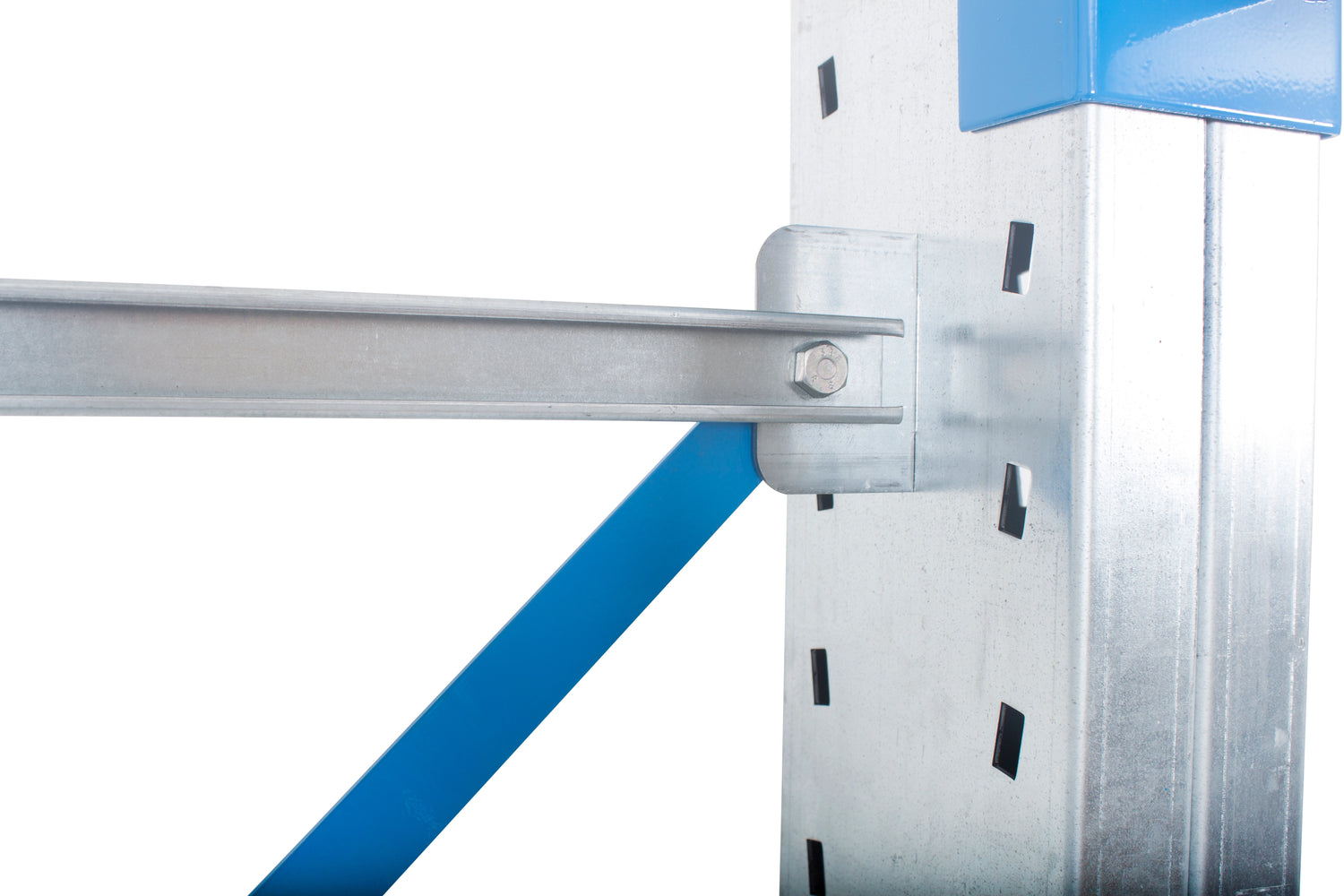

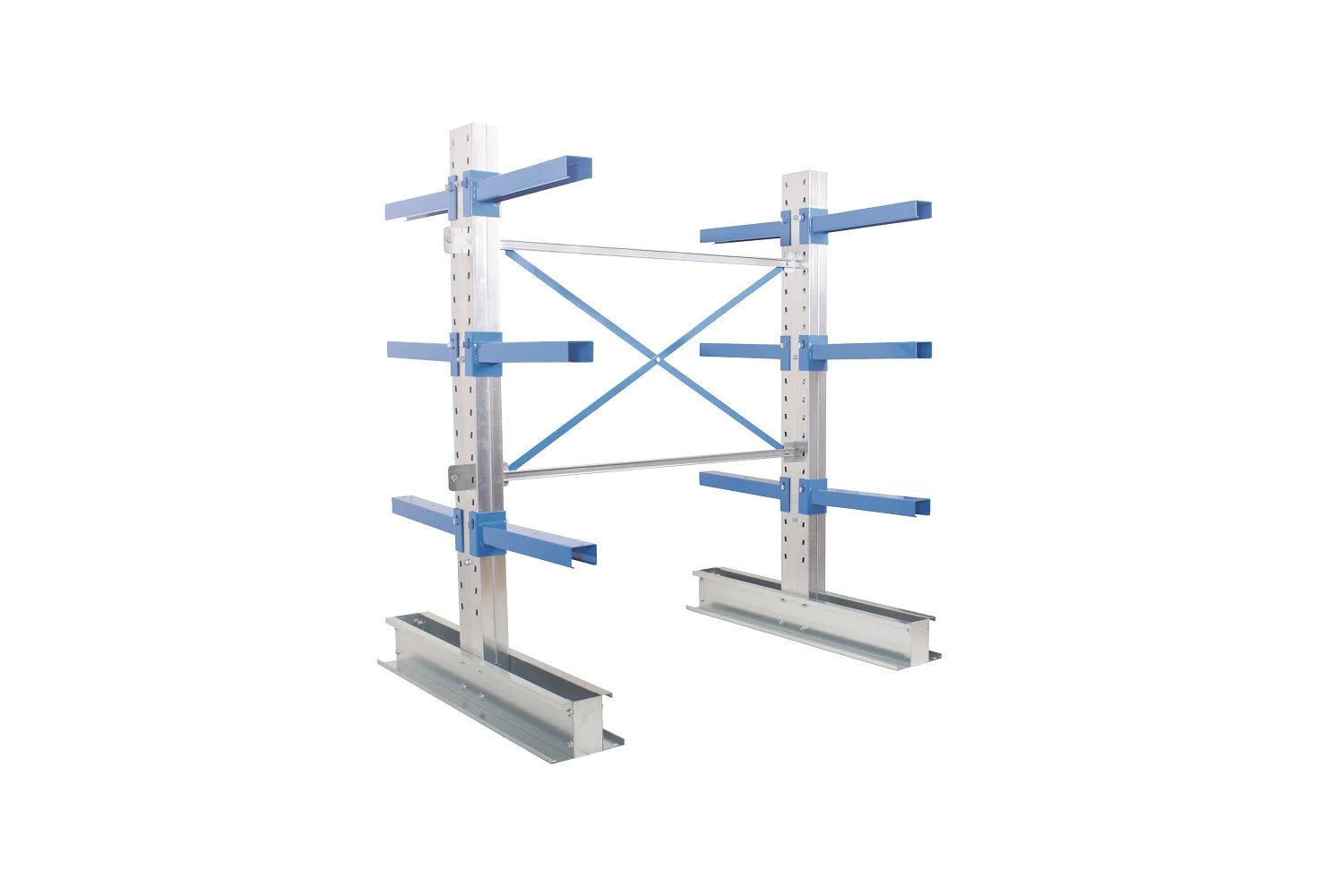

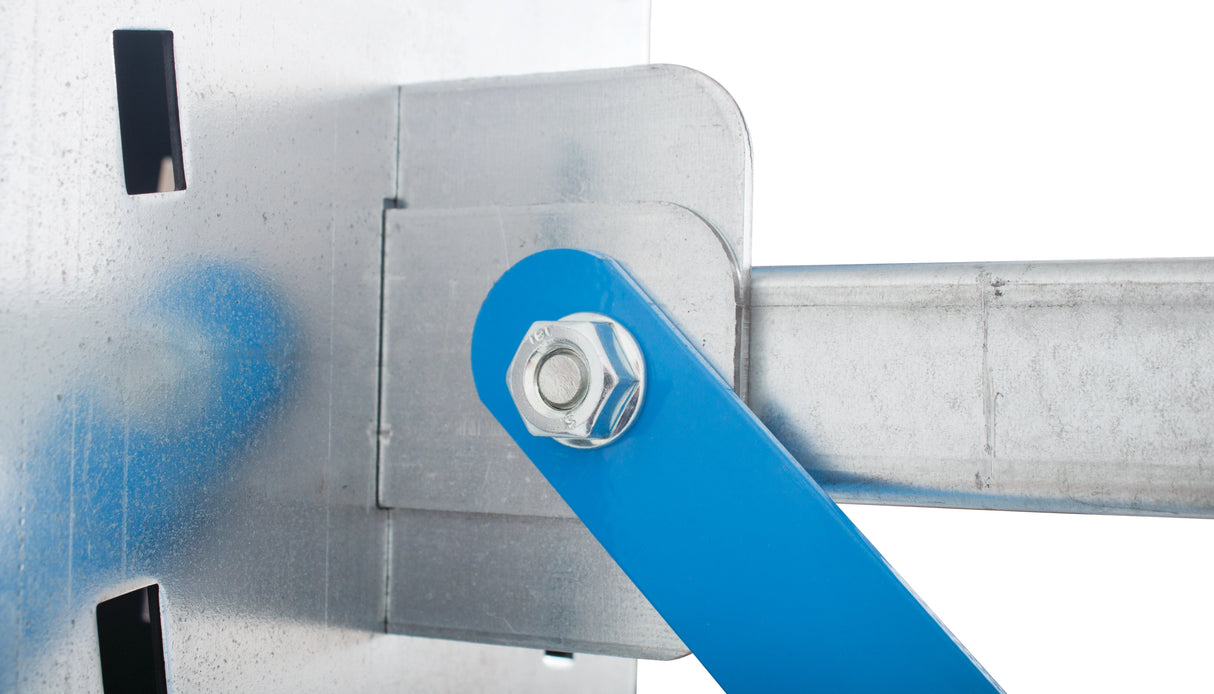

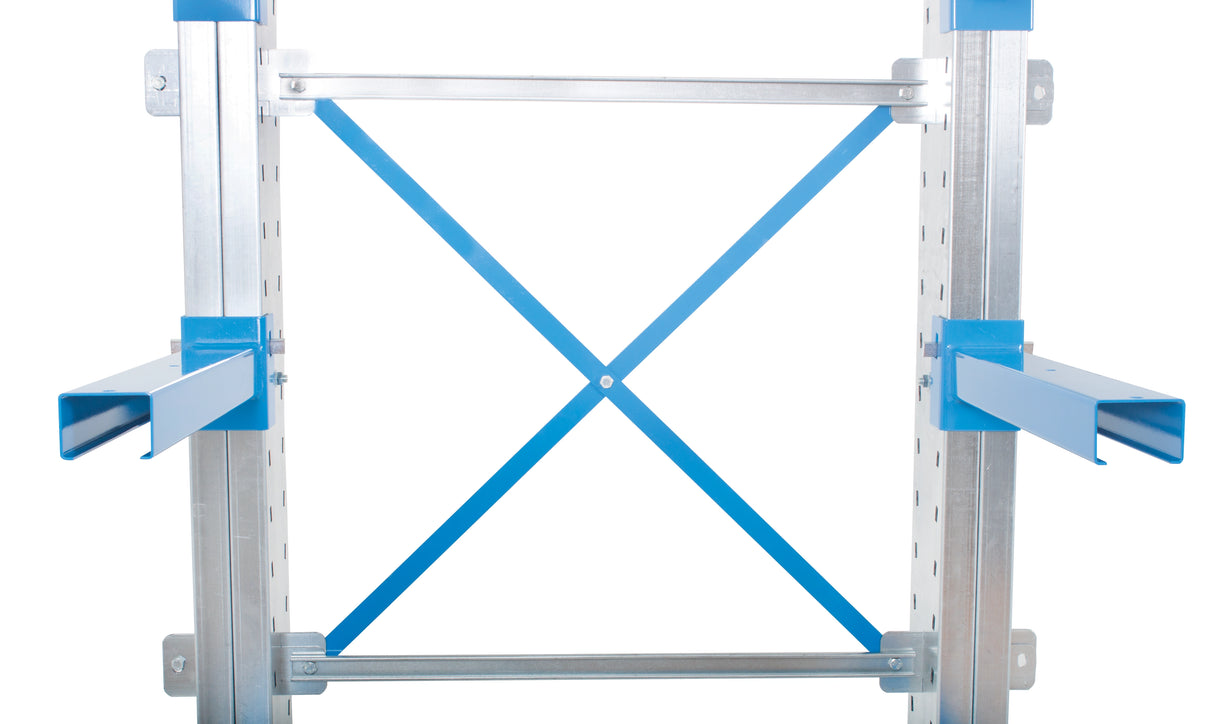

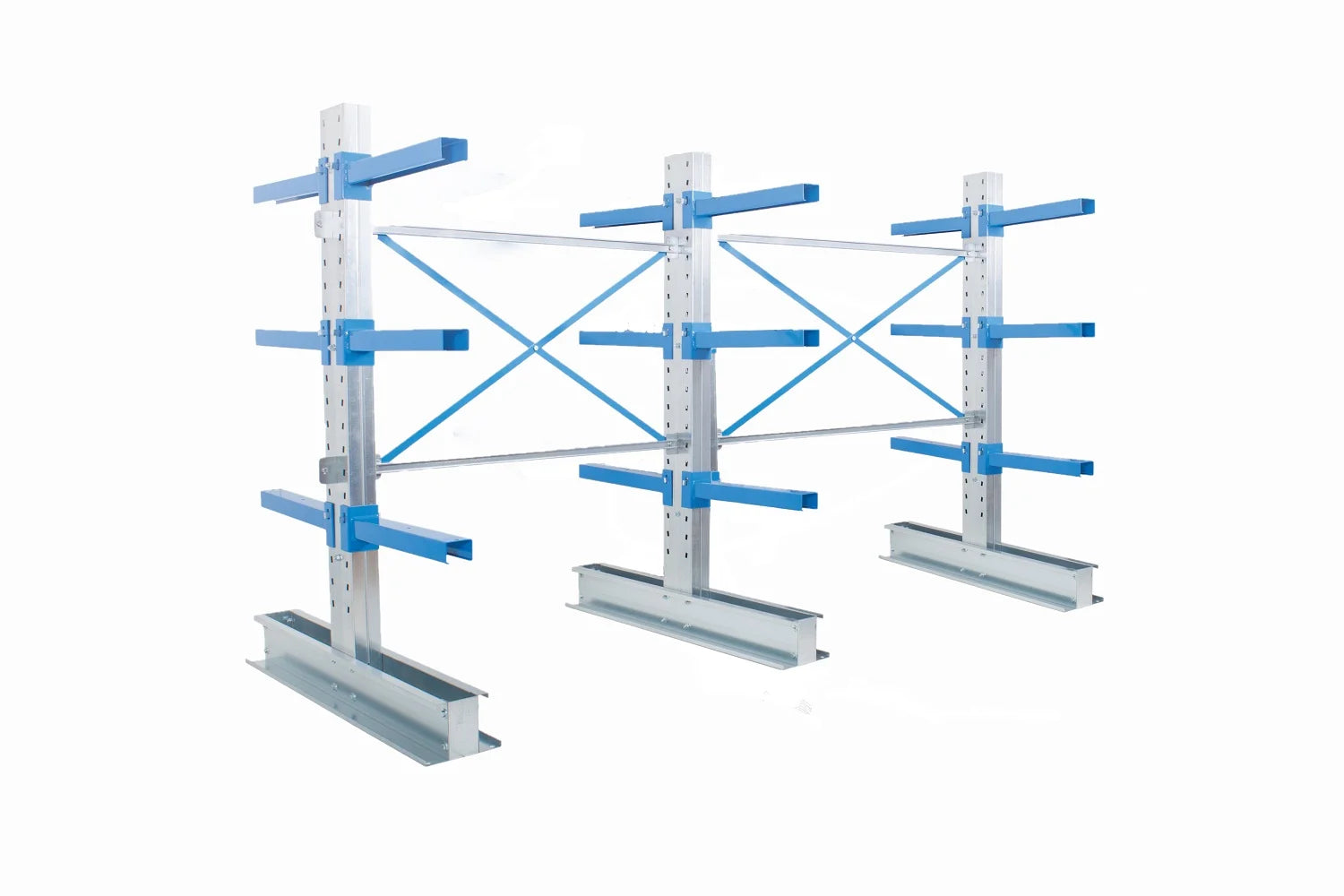

Additionally, frames are spaced at either 1000mm or 1500mm centres and include a bolted X-brace. Therefore, planning your run using starter and extension bays is simple and accurate.

Each bay in this double-sided cantilever racking system is supplied with:

• A base and column per frame
• Bracing for added strength
• All required fixings

Floor fixings (M12 x 100) are available on request.

Key Benefits of This Cantilever Racking System

• Excellent value for money
• Easy to assemble and reconfigure
• Durable epoxy-coated finish
• Suitable for heavy duty and long-load storage
• Ideal for warehouse and industrial use

Because of its flexibility and strength, this cantilever racking solution works well in demanding storage environments.

Load Capacity and Specifications

This double-sided cantilever racking system delivers high load capacity while remaining adjustable.

• Maximum load per arm: 600kg
• Maximum load per side: up to 2200kg, depending on arm length and frame height

Load capacities by height and arm length are as follows:

Height 1976mm

• 600mm arm: 2200kg
• 800mm arm: 1900kg
• 1000mm arm: 1600kg

Height 2432mm

• 600mm arm: 2200kg
• 800mm arm: 1900kg
• 1000mm arm: 1600kg

Height 2964mm

• 600mm arm: 2200kg
• 800mm arm: 1900kg
• 1000mm arm: 1600kg

Additionally we also supply bays in 2432mm and 2964mm heights. Therefore, please contact us for further details or configuration advice.

Therefore, if you need a reliable solution for long-load storage, this double-sided cantilever racking system offers both strength and flexibility. In addition, the adjustable design means the cantilever racking can adapt as storage demands change. As a result, this cantilever rack system provides a practical, long-term storage solution for busy warehouse and industrial environments.
