Anco Adjustable Single Sided Cantilever Racking

Anco Adjustable Single Sided Cantilever Racking

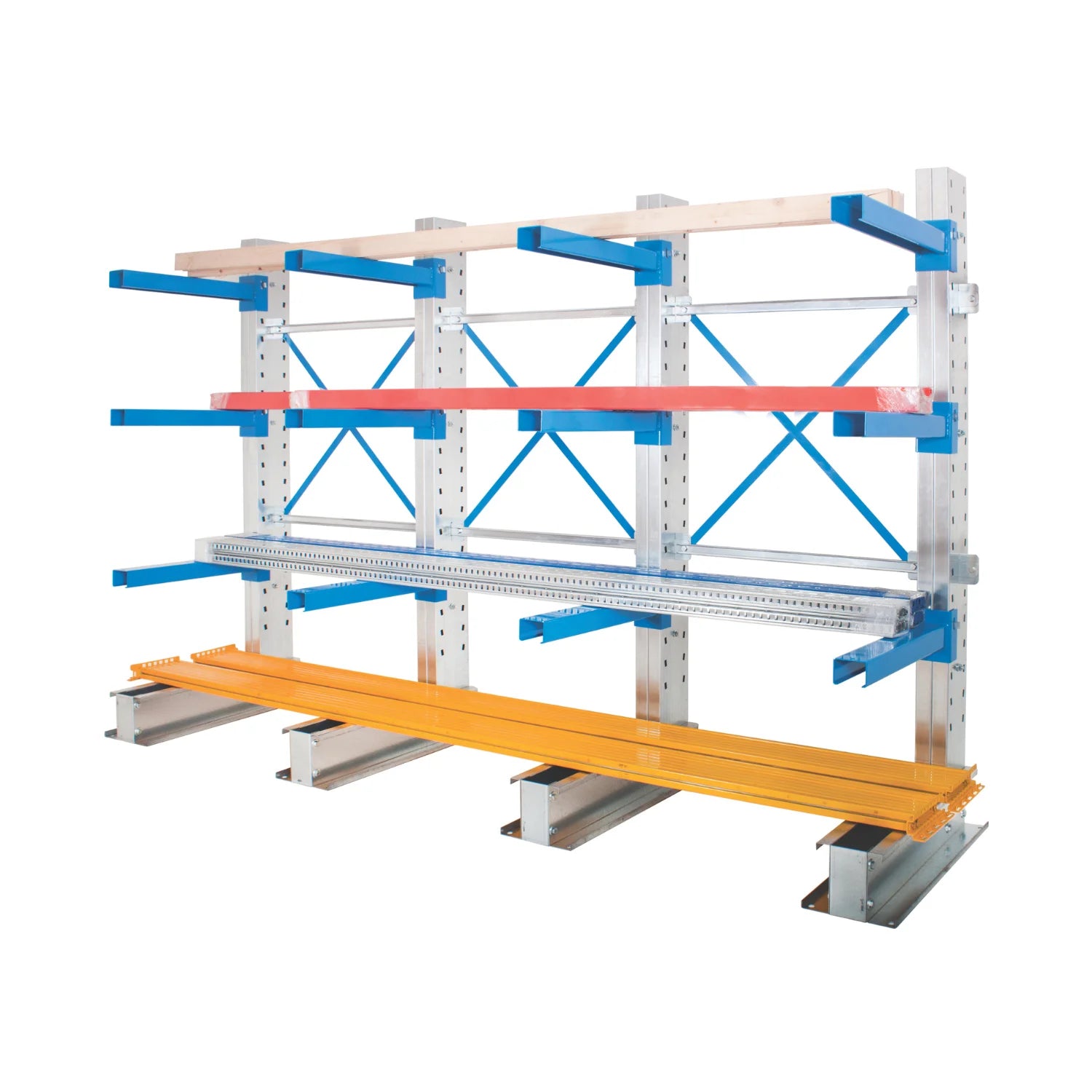

This single-sided cantilever racking system provides a cost-effective solution for storing long and awkward items such as timber, pipes and steel sections. Because the system uses modular bays and fittings, it therefore allows flexible configuration to suit a wide range of warehouse and industrial environments.

In addition, this cantilever racking design also supports both single and double-sided layouts. The frames are available in three heights and three depths, which makes it easier to plan a storage system around available space and load requirements.

Flexible Modular Design

Additionally, each bay in this single-sided cantilever racking system comes complete with three arms per frame. However, you can easily add or remove arm levels as storage needs change. As a result, the cantilever rack system adapts well to varying load sizes and product types.

Furthermore, the arms can be fitted with end stops at an additional cost. These help secure loose items and reduce the risk of products falling from the arms during loading or unloading

Simple Layout Planning and Installation

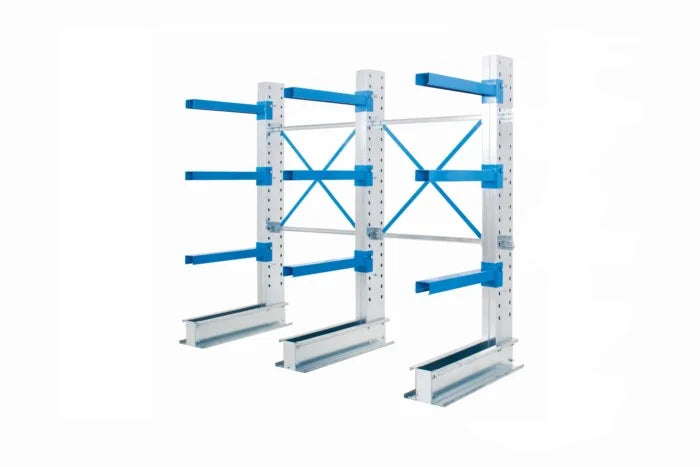

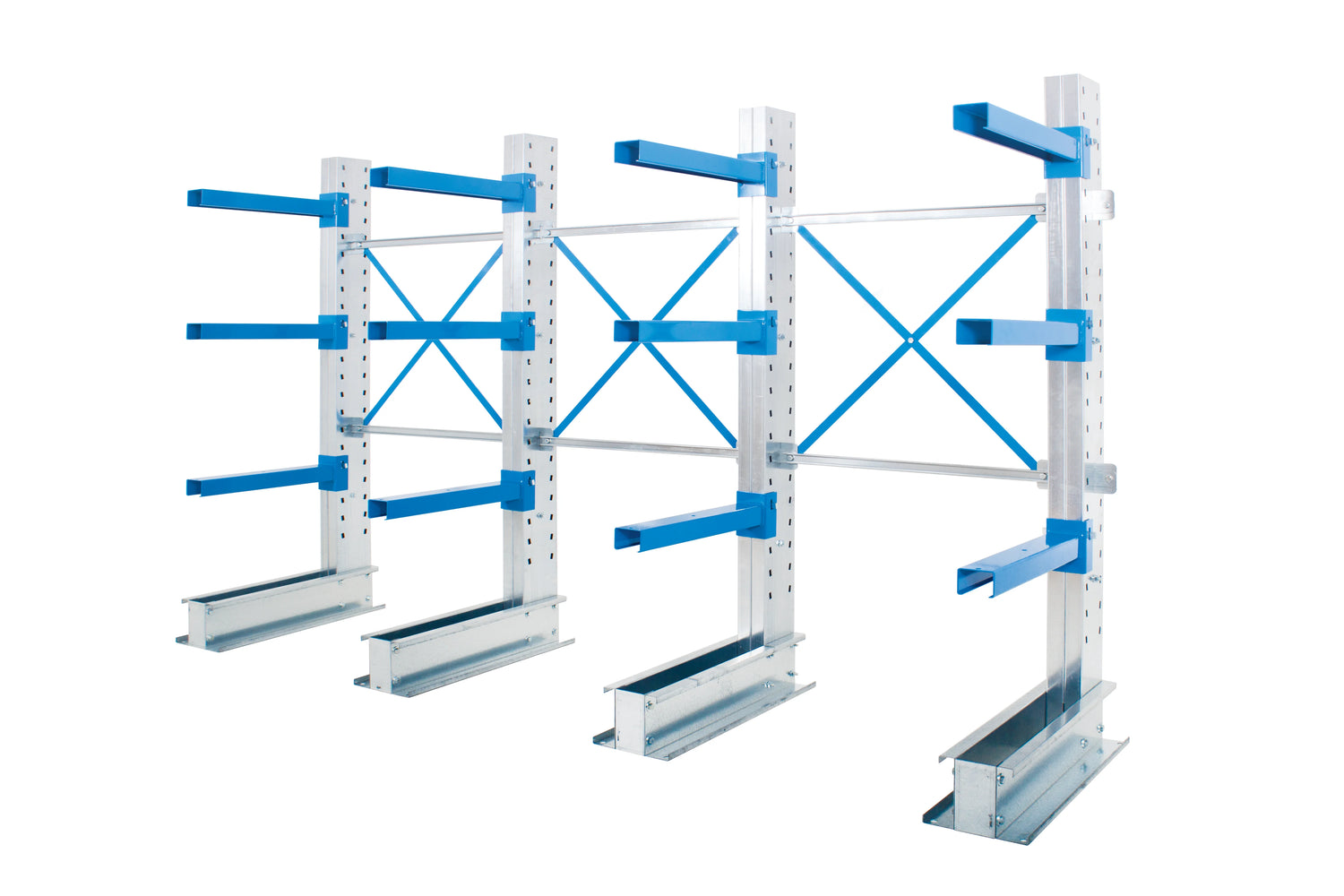

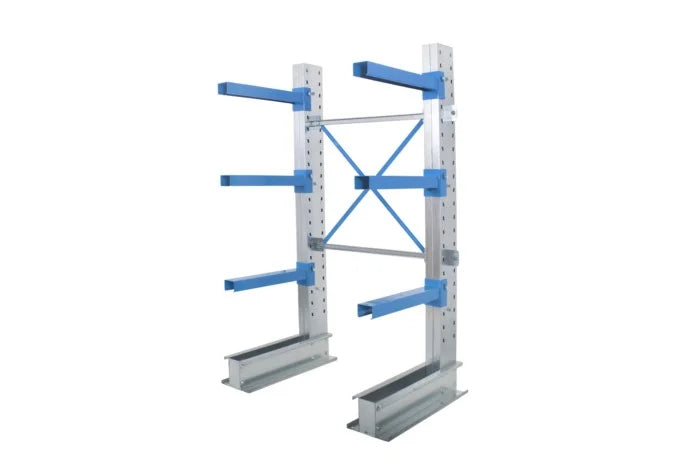

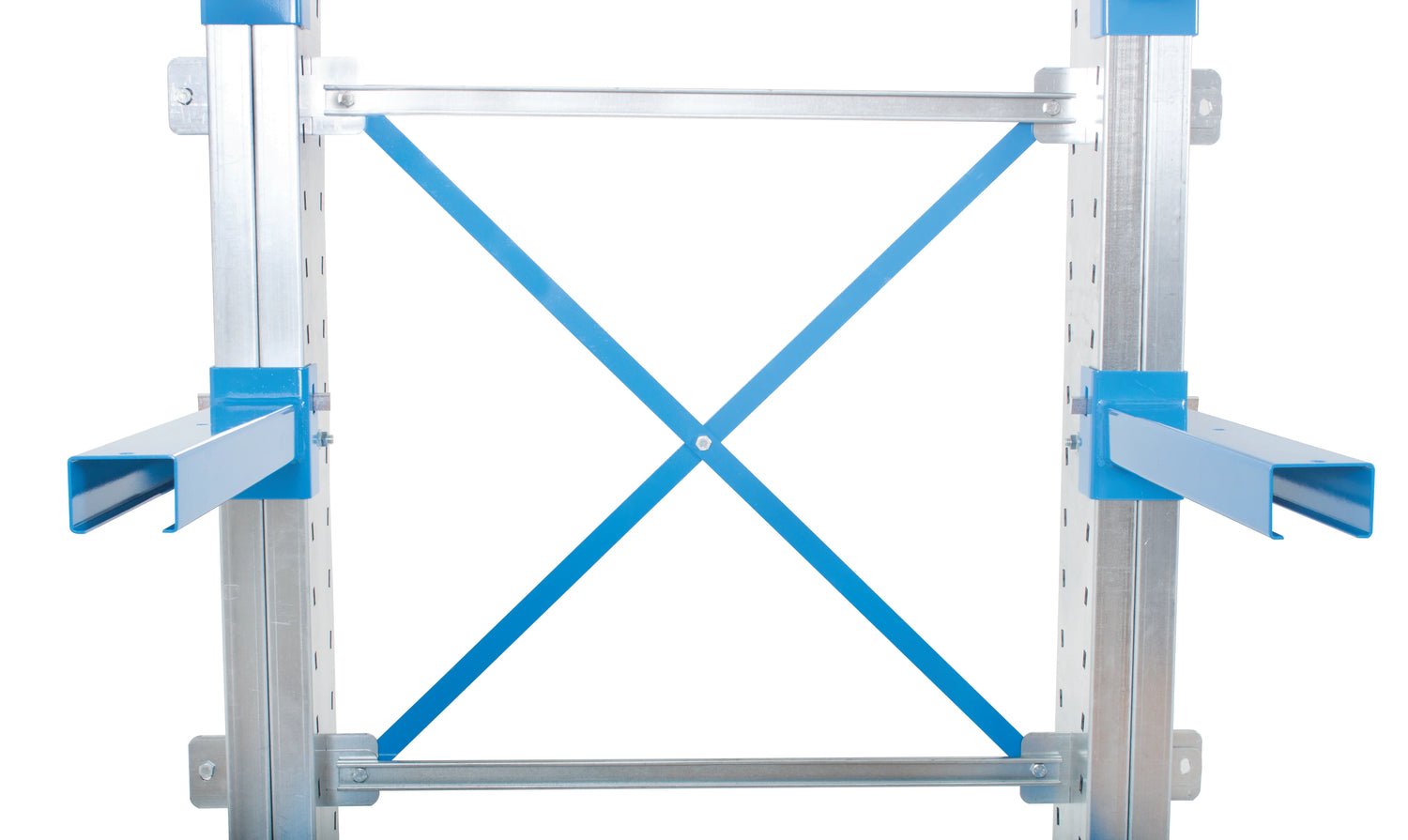

The frames are spaced at either 1000mm or 1500mm centres and include a bolted X-brace. Therefore, you can quickly calculate your run using starter and extension bays.

As a result, all bays in this cantilever storage system are supplied with

• A base and column per frame

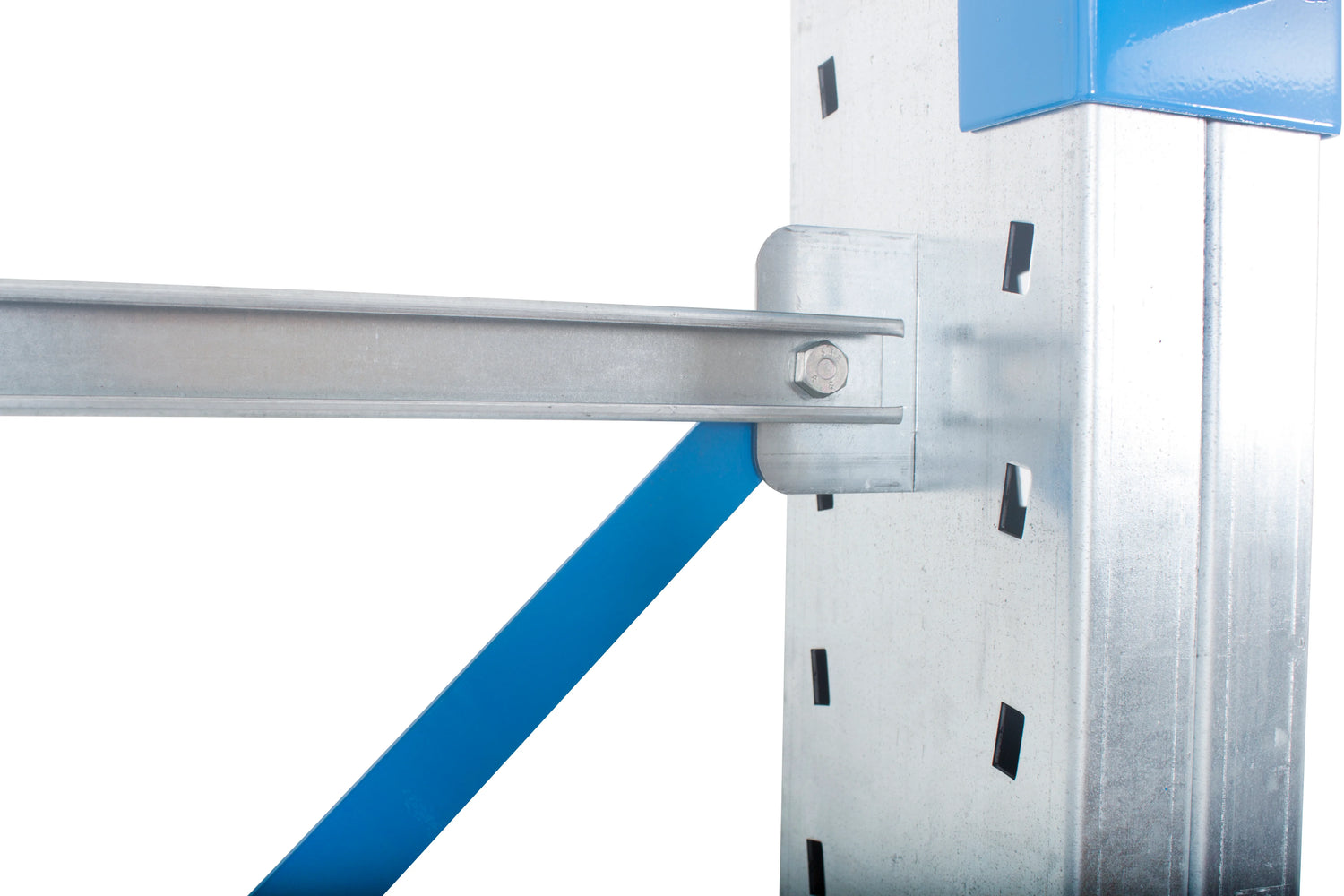

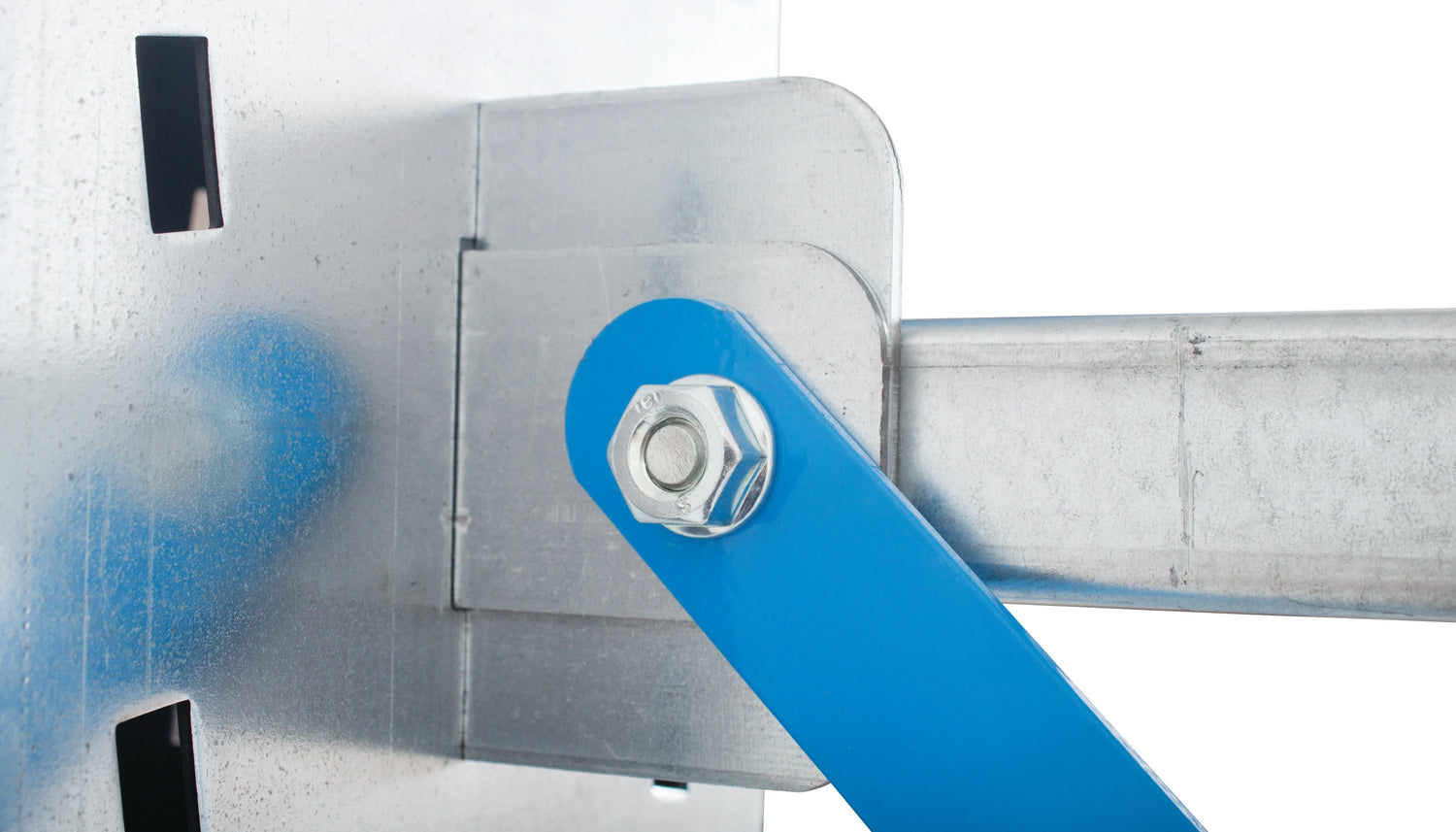

• Bracing for added stability
• All necessary fixings

Floor fixings (M12 x 100) are available on request. Single frames include three arms as standard.

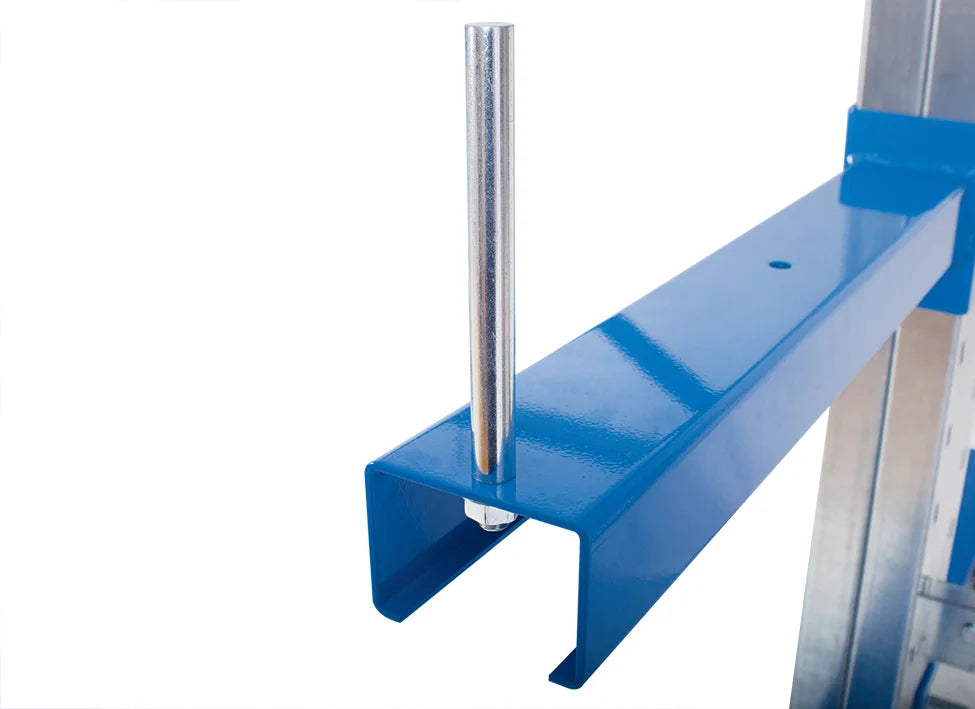

Likewise, arm stops can be bolted into two separate positions. However, arm end stops are not included as standard and must be ordered separately.

Key Benefits of This Cantilever Racking System

• Incredible value for money
• Easy to build and reconfigure
• Up to 2200kg per side

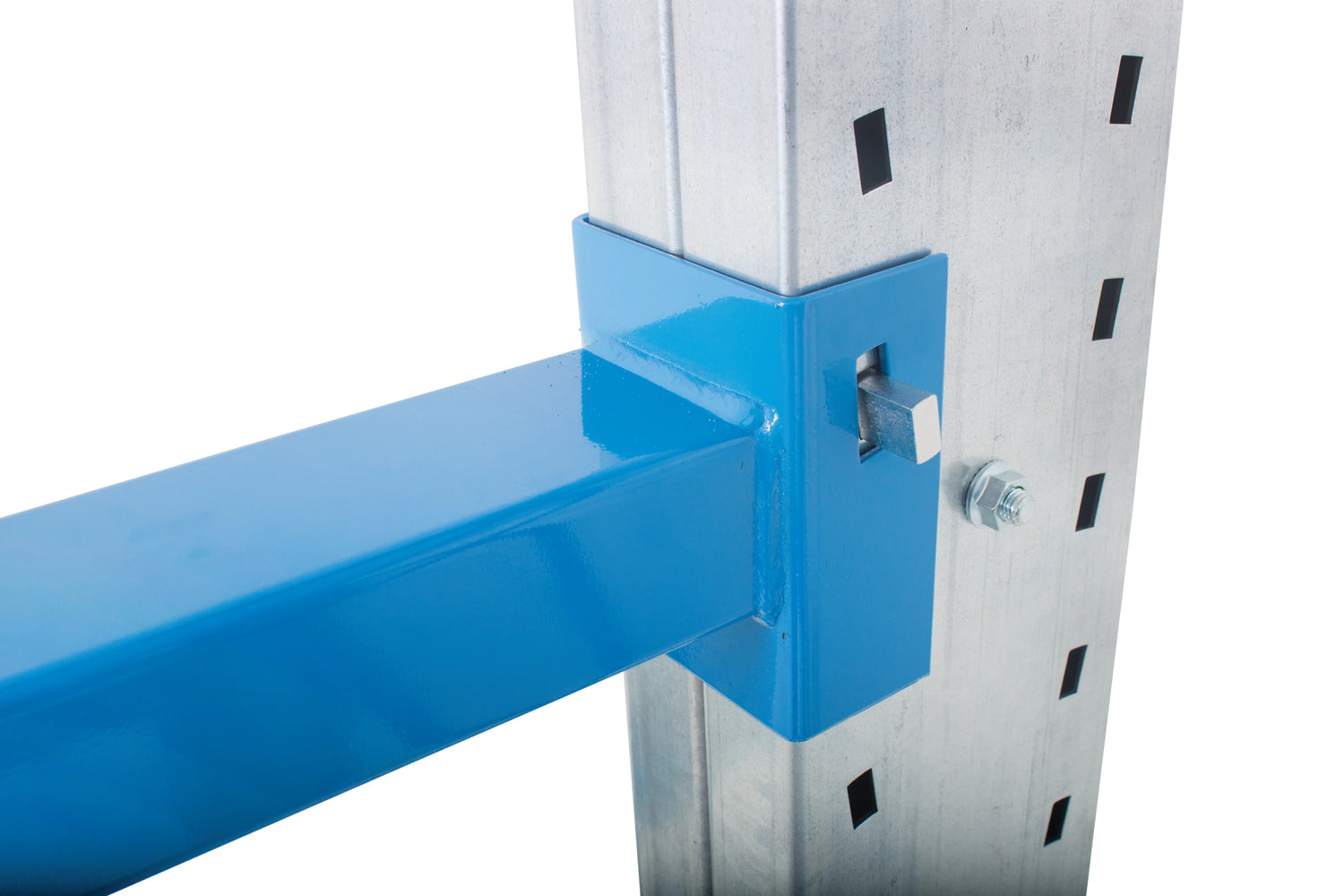

• Arms adjust every 75mm
• Tough epoxy finish for durability

Loadings and Specifications

Moreover, this single-sided cantilever racking system offers strong load capacity while maintaining flexibility.

• Maximum load per arm: 600kg

Maximum load per side depends on arm length and frame height:

Height 1976mm

• 600mm arm: 2200kg
• 800mm arm: 1900kg
• 1000mm arm: 1600kg

Height 2432mm

• 600mm arm: 2200kg
• 800mm arm: 1900kg
• 1000mm arm: 1600kg

Height 2964mm

• 600mm arm: 2200kg
• 800mm arm: 1900kg
• 1000mm arm: 1600kg

We also offer bays in 2432mm high and 2964mm high. Please call for more details.
